SPRINT CAR APPLICATIONS |
|

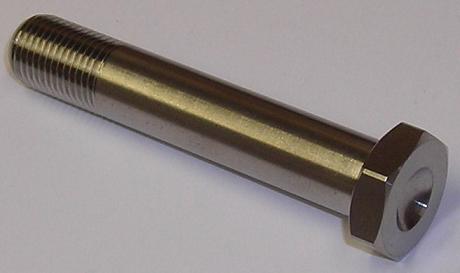

TITANIUM THROUGH BOLT FASTENERS |
|
#4405 |
1/4"-20 X 1/2" |
WING VALVE TO FRAME |
|
#4407 |
1/4"-20 X 3/4" |
OIL PAN TO MOTOR |
|
#4410 |
1/4"-20 X 1" |
|
|
#5405 |
1/4"-28 X 1/2" |
FLOOR PAN |
|
#5406 |
1/4"-28 X 5/8" |
|
|
#5407 |
1/4"-28 X 3/4" |
|
|
#5408 |
1/4"-28 X 7/8" |
TOP FUEL PLATE |
|
#5410 |
1/4"-28 X 1" |
|
|
#5415 |
1/4"-28 X 1 1/2" |
FRONT WING STRAP TO FRAME |
|
#5417 |
1/4"-28 X 1 3/4" |
THROTTLE BELL CRANK TO FRAME |
|
#4505 |
5/16"-18 X 1/2" |
STEERING WHEEL BOLT |
|
#4507 |
5/16"-18 X 3/4" |
FUEL TANK, SIDE MOUNTS |
|
#4510 |
5/16"-18 X 1" |
BEAD LOCK BOLT |
|
#4511 |
5/16"-18 X 1 1/8" |
BEAD LOCK BOLT |
|
#4512A |
5/16"-18 X 1 1/4" |
BEAD LOCK BOLT |
|
#5507 |
5/16"-24 X 3/4" |
|
|
#5508 |
5/16"-24 X 7/8" |
INBOARD ROTOR TO AXLE CLAMP |
|
#5510 |
5/16"-24 X 1" |
|
|
#5512 |
5/16"-24 X 1 1/4" |
|
|
#5515 |
5/16"-24 X 1 1/2" |
TOP WING, FRONT WING, WING STRAPS |
|
#5517 |
5/16"-24 X 1 3/4" |
WING CLAMP, STEERING CLAMP, SEAT |
|
#5520 |
5/16"-24 X 2" |
BRAKE PEDAL TO FRAME, SEAT TO FRAME |
|
#5522 |
5/16"-24 X 2 1/4" |
BRAKE PEDAL, MASTER, SEAT |
|
#5525 |
5/16"-24 X 2 1/2" |
BRAKE PEDAL TO MASTER CYLINDER |
|
#5527 |
5/16"-24 X 2 3/4" |
SEAT |
|
#4612 |
3/8"-16 X 1 1/4" |
TORQUE TUBE TO REAR END |
|
#4615 |
3/8"-16 X 1 1/2" |
TORQUE PLAT TO MOTOR ALUM. BLOCK |
|
#4625 |
3/8"-16 X 2 1/2" |
ENGINE BLOCK TO FRAME |
|
#5607 |
3/8"-24 X 3/4" |
TOP WING RUNNERS |
|
#5610 |
3/8"-24 X 1" |
LEFT FRONT BRAKE CALIPER TO BRACKET |
|
#5612 |
3/8"-24 X 1 1/4" |
|
|
#5615A |
3/8"-24 X 1 1/2" |
TOP WING TREE, TORSION STOP PINCH BOLT |
|
#5617C |
3/8"-24 X 1 3/4" |
|
|
#5619 |
3/8"-24 X 1.900 |
PITMAN ARM, FRONT/REAR TORSION STOPS & ARMS |
|
#5620 |
3/8"-24 X 2" |
REAR STOPS, BRAKE PEDAL TO FRAME |
|
#5622 |
3/8"-24 X 2 1/4" |
PITMAN ARM |
|
#5625 |
3/8"-24 X 2 1/2" |
REAR MOTOR PLATE TO FRAME |
|
#5630 |
3/8"-24 X 3" |
|
|
#5640 |
3/8"-24 X 4" |
|
|
#4715 |
7/16"-14 X 1 1/2" |
BRAKE CALIPER TO REAR END |
|
#8309 |
7/16"-20 X .875 |
U-JOINT TO CRANK SHAFT |
|
#3810 |
7/16"-20 X 1" |
|
|
#5719 |
7/16"-20 X 1.900 |
TORSION STOP ADJUSTER |
|
#5812 |
1/2"-20 X 1 1/4" |
RADIUS ROD TO BIRD CAGE BOLT |
|
#5813 |
1/2"-20 X 1.375 |
FRONT AND REAR TOP SHOCKS |
|
#5814 |
1/2"-20 X 1.400 |
FRONT RADIUS RODS TO AXLE |
|
#5815 |
1/2"-20 X 1 1/2" |
STEERING ARM TO SPINDLE |
|
#5817 |
1/2"-20 X 1.750 |
RIGHT FRONT STEERING ARM TO SPINDLE |
|
#5820 |
1/2"-20 X 2" |
TIE RODS, STEERING ARMS |
|
#5822 |
1/2"-20 X 2 1/4" |
PITMAN ARM, SHOCK BOLT |
|
#5825 |
1/2"-20 X 2 1/2" |
|
|
#5827 |
1/2"-20 X 2 3/4" |
SHOCKS, ALL RADIUS RODS TO FRAME |
|
#5830 |
1/2"-20 X 3" |
|
|
#5835 |
1/2"-20 X 3 1/2" |
FRONT TOP SHOCK |
|
#5837 |
1/2"-20 X 3 3/4" |
RADIUS ROD TO BIRDCAGE |
|
|
|
|
|

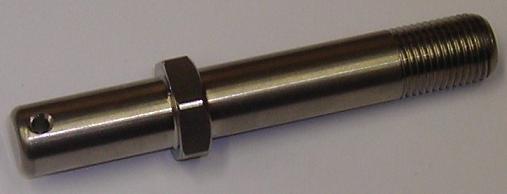

TITANIUM QUICK RELEASE SHOCK PIN FASTENERS |
|
#7520 |
1/2"-20 X 2.040 |
FRONT/REAR TOP SHOCK, FRONT AXLE, RADIUS RODS
(SCREW IN) |
|
#7531 |
1/2"-20 X 3.175 |
LOWER REAR ARM SHOCK |
|
#7534 |
1/2"-20 X 3.415 |
TOP REAR SHOCK, RADIUS ROD |
|
#7540 |
1/2"-20 X 4.070 |
TOP FRONT SHOCK |
|
#7550 |
1/2"-20 X 4.915 |
LOWER FRONT SHOCK |
|
|
|
|
|
#1055 |
TITANIUM SHOCK KIT |
QUICK RELEASE STYLE, 8 BOLTS, 8 RUE CLIPS, 8
SPACERS, 2 NUTS, FOR J&J |
|
#1056 |
TITANIUM SHOCK KIT |
QUICK RELEASE STYLE, 8 BOLTS, 8 RUE CLIPS, 8
SPACERS, 8 NUTS, FOR MAXIM/EAGLE/JEI |
|
|
|
|
|

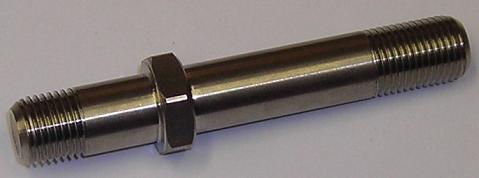

TITANIUM ONE-NUT STYLE SHOCKS/RADIUS
RODS/D-LINK/T-ROD FASTENERS |
|
#7319 |
1/2"-20 X 1.975 |
FRONT/REAR TOP SHOCK, FRONT AXLE, RADIUS RODS
(SCREW IN) |
|
#7325 |
1/2"-20 X 2.575 |
1" STEERING ARM |
|
#7331 |
1/2"-20 X 3.100 |
LOWER REAR ARM SHOCK |
|
#7333 |
1/2"-20 X 3.350 |
TOP REAR SHOCK, RADIUS ARM |
|
#7340 |
1/2"-20 X 4" |
TOP FRONT SHOCK |
|
#7350 |
1/2"-20 X 4.845 |
LOWER FRONT SHOCK |
|
#7355 |
1/2"-20 X 5.096 |
LOWER FRONT SHOCK |
|
|
|
|
|
#1052 |
TITANIUM SHOCK KIT |
ONE-NUT STYLE, 8 BOLTS, 10 NUTS, FOR J&J |
|
#1053 |
TITANIUM SHOCK KIT |
ONE-NUT STYLE, 8 BOLTS, 16 NUTS, FOR MAXIM/EAGLE |
|
|
|
|
|
#1059 |
TITANIUM DRAGLINK, TIE ROD KIT |
ONE NUT STYLE, 4 BOLTS, 8 THIN LOCKNUTS |
|
#3921 |
STEERING BOLT KIT |
2 BUTTON HEAD BOLTS (1/2"-20 X 2.100), SPACERS, AND NUTS |
|
|
|
|
|

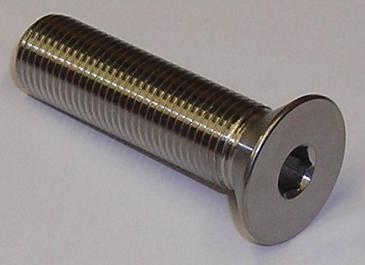

TITANIUM FLAT HEAD BOLTS |
|
#3412 |
3/8"-16 X 1 1/4" FH |
DIRECT MOUNT FRONT HUBS |
|
#3415 |
3/8"-16 X 1 1/2" FH |
DIRECT MOUNT FRONT HUBS |
|
#3507 |
1/2"-20 X 3/4" FH |
FRONT BRAKE ROTOR TO HUB |
|
#3509 |
1/2"-20 X .900 FH |
FRONT ROTOR |
|
#3519 |
1/2"-20 X 1.915 |
LEFT FRONT BRAKE BRACKET TO SPINDLE |
|
|
|
|
|
TITANIUM BUMPER BOLTS |
|
#TI-BB |
10-32 X 1 1/2" |
|
|
|
|
|
|

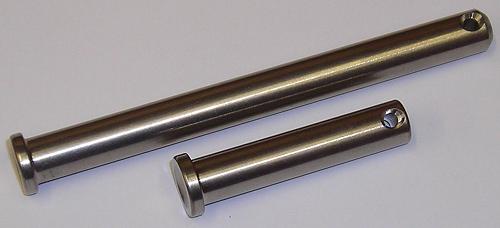

TITANIUM JACOBS LADDER PINS |
|
#8713 |
3/8" X 1.3 |
|
|
#8737 |
3/8" X 3.7 |
|
|
#8741 |
3/8" X 4.1 |
|
|
#8913 |
1/2" X 1.3 |
|
|
|
|
|
|

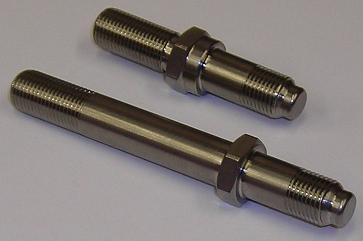

TITANIUM STUDS |
|
#3016 |
5/16-24/18 X 1.670 |
TORQUE BALL RETAINER TO HOUSING |
|
#3120 |
3/8"-16-24 X 2" |
TORQUE TUBE STUD |
|
|
|
|
|

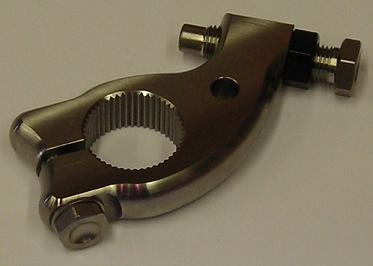

TORSION STOPS (1 3/4" OR 2" SPLIT) |
|
#1061 |
TITANIUM TORSION STOP |
THREADED FOR PINCH BOLT, 2 TI BOLTS, WASHER, ALUM
JAM NUT |
|
|
|
|
|
TITANIUM KITS (AVAILABLE IN QUICK RELEASE OR
ONE-NUT STYLE) |
|
#B-111 |
MAXIM KIT |
CONTAINS 153 TITANIUM BOLTS, AIRCRAFT NUTS, AND
WASHERS |
|
#B-1113 |
J&J KIT |
CONTAINS 153 TITANIUM BOLTS, AIRCRAFT NUTS, AND
WASHERS |
|
#B-1115 |
JEI KIT |
CONTAINS 151 TITANIUM BOLTS, AIRCRAFT NUTS, AND
WASHERS |
|
*THE ABOVE KITS ARE UPGRADED TO
INCLUDE QUICK RELEASE OR ONE NUT STYLE SHOCK PINS AND ONE-NUT
STYLE DRAG LINK TIE ROD STUD KIT. THE JACOBS LADDER PINS
ARE INCLUDED IN A PLASTIC CASE. |
