SPACERS & REDUCER BUSHINGS:

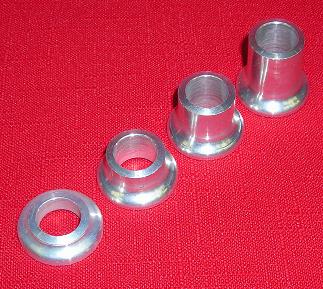

ROD END SPACERS - STEEL & ALUMINUM

PLEASE NOTE:  THESE SPACERS ARE NOT MEANT TO BE USED AS BUSHINGS.

SP-0404A 1/4" ID X 1/4" HIGH- ALUMINUM



The 5/16" spacers work great for quarter midgets!

The 3/8" & 7/16" spacers work great for micros!

The 1/2" spacers work great for sprint cars!



SP-0406A 1/4" ID X 3/8" HIGH- ALUMINUM
SP-0408A 1/4" ID X 1/2" HIGH- ALUMINUM

SP-0504A 5/16" ID X 1/4" HIGH- ALUMINUM

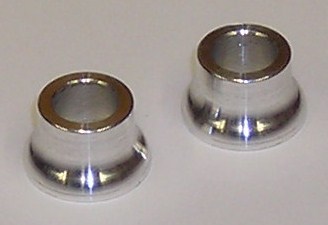

SP-0506A 5/16" ID X 3/8" HIGH- ALUMINUM
SP-0508A 5/16" ID X 1/2" HIGH- ALUMINUM

SP-0604A 3/8" ID X 1/4" HIGH- ALUMINUM
SP-0608A 3/8" ID X 1/2" HIGH- ALUMINUM
SP-0612A 3/8" ID X 3/4" HIGH- ALUMINUM
SP-0616A 3/8" ID X 1" HIGH- ALUMINUM

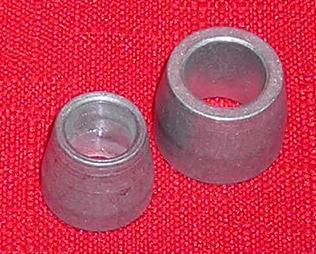

SP-0704A 7/16" ID X 1/4" HIGH- ALUMINUM
SP-0708A 7/16" ID X 1/2" HIGH- ALUMINUM
SP-0712A 7/16" ID X 3/4" HIGH- ALUMINUM
SP-0716A 7/16" X 1" HIGH- ALUMINUM

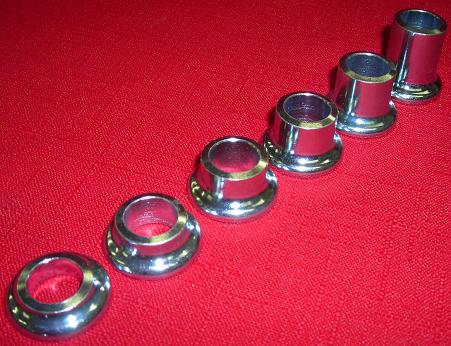

SP-0804S 1/2" ID X 1/4" HIGH- STEEL
SP-0806S 1/2" ID X 3/8" HIGH- STEEL
SP-0808S 1/2" ID X 1/2" HIGH- STEEL
SP-0810S 1/2" ID X 5/8" HIGH- STEEL
SP-0812S 1/2" ID X 3/4" HIGH- STEEL
SP-0816S 1/2" ID X 1" HIGH- STEEL

SP-0804A 1/2" ID X 1/4" HIGH- ALUMINUM
SP-0808A 1/2" ID X 1/2" HIGH- ALUMINUM
SP-0812A 1/2" ID X 3/4" HIGH- ALUMINUM
SP-0816A 1/2" ID X 1" HIGH- ALUMINUM

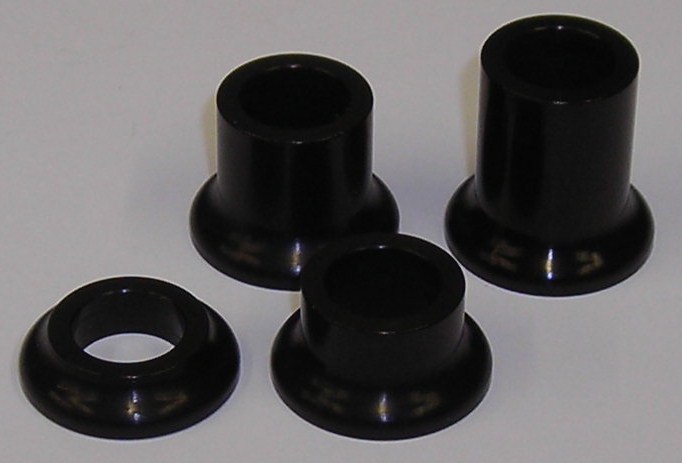

SP-0804A-BK 1/2" ID X 1/4" HIGH- ALUMINUM- BLACK
SP-0808A-BK 1/2" ID X 1/2" HIGH- ALUMINUM- BLACK
SP-0812A-BK 1/2" ID X 3/4" HIGH- ALUMINUM- BLACK
SP-0816A-BK 1/2" ID X 1" HIGH- ALUMINUM- BLACK

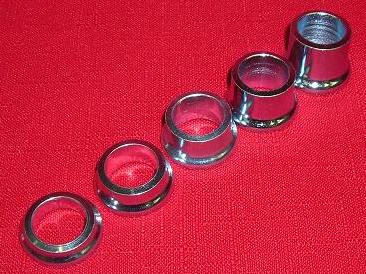

SP-1004S 5/8" ID X 1/4" HIGH- STEEL
SP-1006S 5/8" ID X 3/8" HIGH- STEEL
SP-1008S 5/8" ID X 1/2" HIGH- STEEL
SP-1010S 5/8" ID X 5/8" HIGH- STEEL
SP-1012S 5/8" ID X 3/4" HIGH- STEEL


SPACERS - STEEL - GOLD

SP-1207S 3/4" ID X 7/16" HIGH- STEEL


SPRINT CAR FLAT SHOCK SPACERS

SP-SHOCK-08A 1/2" ID FLAT SHOCK SPACER-
BLACK NYLON


QUARTER MIDGET FRONT SPINDLE SPACERS

SP-1002A 5/8" ID X 1/8" HIGH- ALUMINUM
SP-1004A 5/8" ID X 1/4" HIGH- ALUMINUM
SP-1008A 5/8" ID X 1/2" HIGH- ALUMINUM

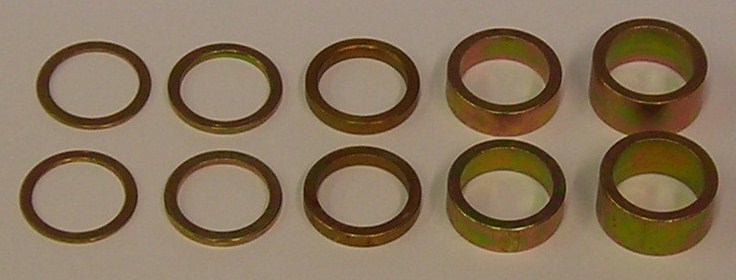

SP-KIT-QM-10S QUARTER MIDGET FRONT SPINDLE SPACER KIT- GOLD- STEEL
(2)- .030"
(2)- .060"
(2)- 1/8"
(2)- 1/4"
(2)- 3/8"

These spacers are only available as a kit.  These are NOT available individually.

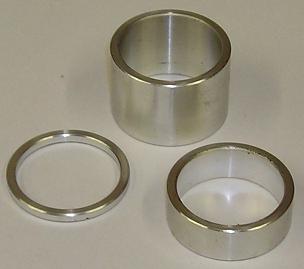

QUARTER MIDGET REAR AXLE SPACERS

SP-2002A 1 1/4" ID X 1/8" HIGH- ALUMINUM
SP-2004A 1 1/4" ID X 1/4" HIGH- ALUMINUM
SP-2006A 1 1/4" ID X 3/8" HIGH- ALUMINUM
SP-2008A 1 1/4" ID X 1/2" HIGH- ALUMINUM
SP-2012A 1 1/4" ID X 3/4" HIGH- ALUMINUM
SP-2016A 1 1/4" ID X 1" HIGH- ALUMINUM
SP-KIT-QM QUARTER MIDGET REAR AXLE SPACER KIT
(2)- 1/8"
(2)- 1/4"
 (1)- 1/2"
 (1)- 3/4"
 (1)- 1"


SPACERS - OILITE - SLEEVE SPACER (BEARING)

SP-O-081014S 1/2" ID X 5/8" OD X 7/8" HIGH- OILITE
SP-O-081016S 1/2" ID X 5/8" OD X 1" HIGH- OILITE
SP-O-081018S 1/2" ID X 5/8" OD X 1 1/8" HIGH- OILITE

SP-O-101212S 5/8" ID X 3/4" OD X 3/4" HIGH- OILITE
These can be used as a micro king pin bushing!
SP-O-101212S-N 5/8" ID X 3/4" OD X 3/4" HIGH- NYLON


SPACERS - OILITE - FLANGED SPACER (BEARING)

SP-O-101212F 5/8" ID X 3/4" OD X 3/4" HIGH- OILITE
SP-O-101212F-N 5/8" ID X 3/4" OD X 3/4" HIGH- NYLON
SP-O-101210F 5/8" ID X 3/4" OD X 5/8" HIGH- OILITE
SP-O-101410F 5/8" ID X 7/8" OD X 5/8" HIGH- OILITE
(PMP STEERING BUSHING)

SP-O-121412F 3/4" ID X 7/8" OD X 3/4" HIGH- OILITE
SP-O-121616F 3/4" ID X 1" OD X 1" HIGH- OILITE
SP-O-121616F-N 3/4" ID X 1" OD X 1" HIGH- NYLON

SP-O-141620F 7/8" ID X 1" OD X 1 1/4" HIGH- OILITE

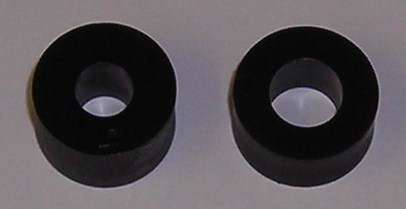

MICRO SPROCKET SPACERS - NYLON - BLACK

SP-SPROCKET-4 1/4" ID X .60" OD X .375" HIGH
SP-SPROCKET-5 5/16" ID X .617" OD X .317" HIGH

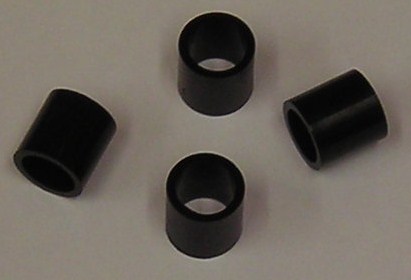

REDUCER BUSHINGS

**USED TO REDUCE THE HOLE SIZE IN SHOCKS OR ROD ENDS**
RB-0806N 1/2" X 3/8"- NYLON
RB-0806S 1/2" X 3/8"

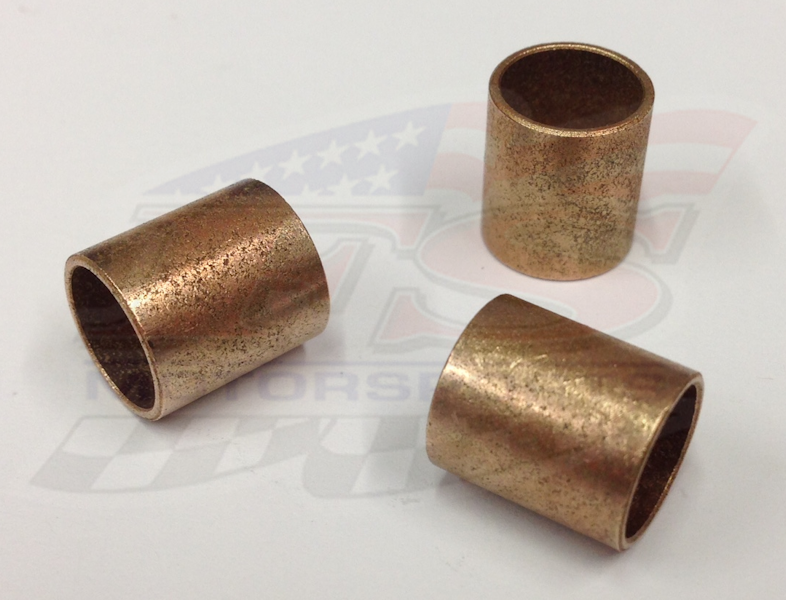

These reducer bushings can come in a bronze oilite material or a zinc steel material.  Availability may vary.

RB-1008S 5/8" X 1/2"
RB-1210S 3/4" X 5/8"
RB-1208S 3/4" X 1/2"


SPACER KITS

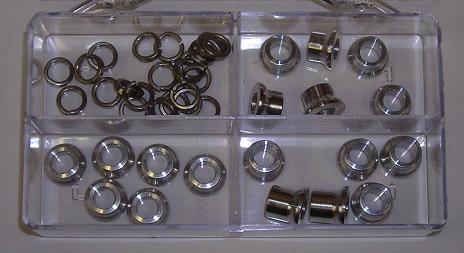

FS-28A 1/4" ID SPACER KIT

25- 1/4" STAINLESS STEEL TRICKLOCK WASHERS
6- 1/4" X 1/4" HIGH ALUMINUM SPACERS
6- 1/4" X 3/8" HIGH ALUMINUM SPACERS
6- 1/4" X 1/2" HIGH ALUMINUM SPACERS



FS-27A 5/16" ID SPACER KIT

25- 5/16" STAINLESS STEEL TRICKLOCK WASHERS
6- 5/16" X 1/4" HIGH ALUMINUM SPACERS
6- 5/16" X 3/8" HIGH ALUMINUM SPACERS
6- 5/16" X 1/2" HIGH ALUMINUM SPACERS

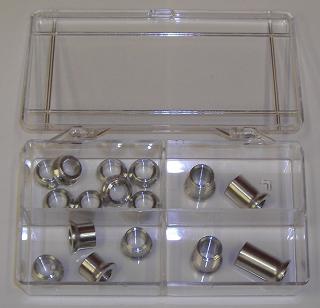

FS-23A 3/8" ID ALUMINUM SPACER KIT

8- 3/8" X 1/4" HIGH ALUM SPACERS
4- 3/8" X 1/2" HIGH ALUM SPACERS
2- 3/8" X 3/4" HIGH ALUM SPACERS
2- 3/8" X 1" HIGH ALUM SPACERS


FS-24A 7/16" ID ALUMINUM SPACER KIT

8- 7/16" X 1/4" HIGH ALUM SPACERS
4- 7/16" X 1/2" HIGH ALUM SPACERS
2- 7/16" X 3/4" HIGH ALUM SPACERS
2- 7/16" X 1" HIGH ALUM SPACERS

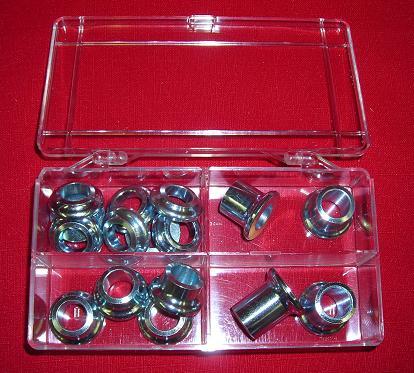

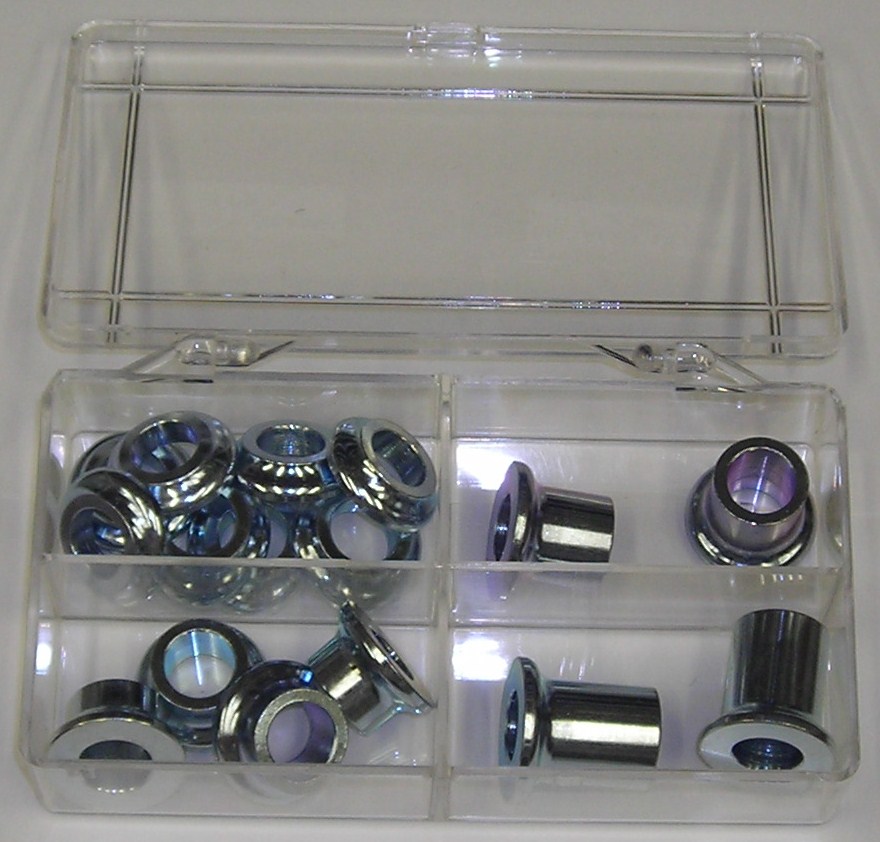

FS-20 1/2" ID STEEL SPACER KIT

8- 1/2" X 1/4" HIGH STEEL SPACERS
4- 1/2" X 1/2" HIGH STEEL SPACERS
2- 1/2" X 3/4" HIGH STEEL SPACERS
2- 1/2" X 1" HIGH STEEL SPACERS

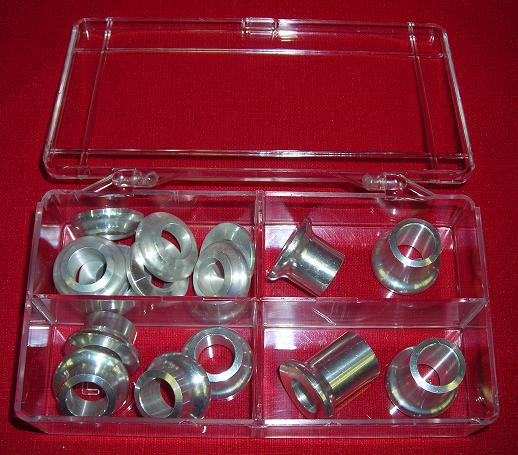

FS-20A 1/2" ID ALUMINUM SPACER KIT

8- 1/2" X 1/4" HIGH ALUM SPACERS
4- 1/2" X 1/2" HIGH ALUM SPACERS
2- 1/2" X 3/4" HIGH ALUM SPACERS
2- 1/2" X 1" HIGH ALUM SPACERS

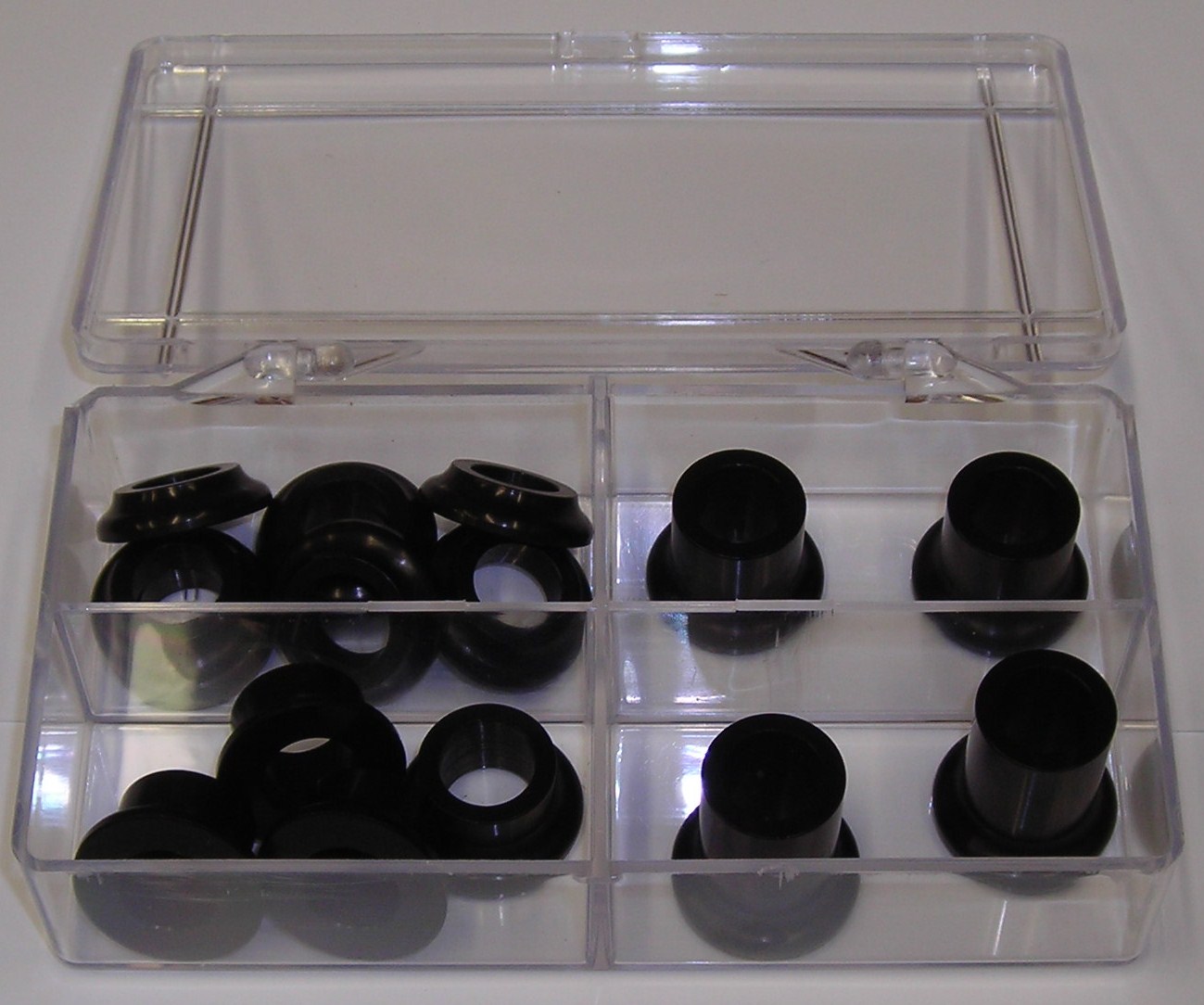

FS-20A-BK 1/2" ID BLACK ALUMINUM SPACER KIT

8- 1/2" X 1/4" HIGH ALUM SPACERS- BLACK
4- 1/2" X 1/2" HIGH ALUM SPACERS- BLACK
2- 1/2" X 3/4" HIGH ALUM SPACERS- BLACK
2- 1/2" X 1" HIGH ALUM SPACERS- BLACK


FS-21 5/8" ID STEEL SPACER KIT

6- 5/8" X 1/4" HIGH STEEL SPACERS
4- 5/8" X 3/8" HIGH STEEL SPACERS
4- 5/8" X 1/2" HIGH STEEL SPACERS
2- 5/8" X 3/4" HIGH STEEL SPACERS
