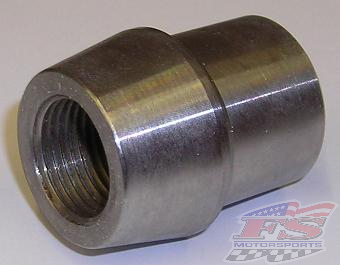

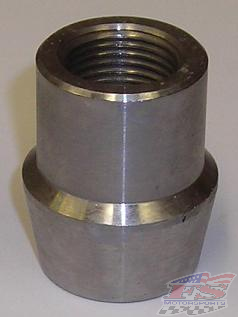

Weldable tube ends:


ALL TUBE ENDS ARE MADE FROM 4130 CHROME MOLY.
LEFT HANDED THREADED PARTS HAVE A DISTINCTIVE MARK AROUND THE OUTSIDE DIAMETER.
PART NUMBER THREAD TUBE O.D. WALL THICKNESS
WTE-1101 10-32 RIGHT 3/8" .058
WTE-1101-L 10-32 LEFT 3/8" .058
WTE-1202 1/4"-28 RIGHT 1/2" .058
WTE-1202-L 1/4"-28 LEFT 1/2" .058
WTE-1203 5/16"-24 RIGHT 1/2" .058
WTE-1203-L 5/16"-24 LEFT 1/2" .058
WTE-1303 5/16"-24 RIGHT 5/8" .058
WTE-1303-L 5/16"-24 LEFT 5/8" .058
WTE-1304 3/8"-24 RIGHT 5/8" .058
WTE-1304-L 3/8"-24 LEFT 5/8" .058
WTE-1305 7/16"-20 RIGHT 5/8" .058
WTE-1305-L 7/16"-20 LEFT 5/8" .058
WTE-1403 5/16"-24 RIGHT 3/4" .058
WTE-1403-L 5/16"-24 LEFT 3/4" .058
WTE-1404 3/8"-24 RIGHT 3/4" .058
WTE-1404-L 3/8"-24 LEFT 3/4" .058
WTE-1405 7/16"-20 RIGHT 3/4" .058
WTE-1405-L 7/16"-20 LEFT 3/4" .058
WTE-1503 5/16"-24 RIGHT 3/4" .065
WTE-1503-L 5/16"-24 LEFT 3/4" .065
WTE-1504 3/8"-24 RIGHT 3/4" .065
WTE-1504-L 3/8"-24 LEFT 3/4" .065
WTE-1505 7/16"-20 RIGHT 3/4" .065
WTE-1505-L 7/16"-20 LEFT 3/4" .065
WTE-1604 3/8"-24 RIGHT 7/8" .058
WTE-1604-L 3/8"-24 LEFT 7/8" .058
WTE-1605 7/16"-20 RIGHT 7/8" .058
WTE-1605-L 7/16"-20 LEFT 7/8" .058
WTE-1606 1/2"-20 RIGHT 7/8" .058
WTE-1606-L 1/2"-20 LEFT 7/8" .058
WTE-1704 3/8"-24 RIGHT 7/8" .065
WTE-1704-L 3/8"-24 LEFT 7/8" .065
WTE-1705 7/16"-20 RIGHT 7/8" .065
WTE-1705-L 7/16"-20 LEFT 7/8" .065
WTE-1706 1/2"-20 RIGHT 7/8" .065
WTE-1706-L 1/2"-20 LEFT 7/8" .065
WTE-1804 3/8"-24 RIGHT 7/8" .083
WTE-1804-L 3/8"-24 LEFT 7/8" .083
WTE-1805 7/16"-20 RIGHT 7/8" .083
WTE-1805-L 7/16"-20 LEFT 7/8" .083
WTE-1806 1/2"-20 RIGHT 7/8" .083
WTE-1806-L 1/2"-20 LEFT 7/8" .083
WTE-1904 3/8"-24 RIGHT 1" .058
WTE-1904-L 3/8"-24 LEFT 1" .058
WTE-1905 7/16"-20 RIGHT 1" .058
WTE-1905-L 7/16"-20 LEFT 1" .058
WTE-1906 1/2"-20 RIGHT 1" .058
WTE-1906-L 1/2"-20 LEFT 1" .058
WTE-1907 5/8"-18 RIGHT 1" .058
WTE-1907-L 5/8"-18 LEFT 1" .058
WTE-2004 3/8"-24 RIGHT 1" .065
WTE-2004-L 3/8"-24 LEFT 1" .065
WTE-2005 7/16"-20 RIGHT 1" .065
WTE-2005-L 7/16"-20 LEFT 1" .065
WTE-2006 1/2"-20 RIGHT 1" .065
WTE-2006-L 1/2"-20 LEFT 1" .065
WTE-2007 5/8"-18 RIGHT 1" .065
WTE-2007-L 5/8"-18 LEFT 1" .065
WTE-2104 3/8"-24 RIGHT 1" .083
WTE-2104-L 3/8"-24 LEFT 1" .083
WTE-2105 7/16"-20 RIGHT 1" .083
WTE-2105-L 7/16"-20 LEFT 1" .083
WTE-2106 1/2"-20 RIGHT 1" .083
WTE-2106-L 1/2"-20 LEFT 1" .083
WTE-2107 5/8"-18 RIGHT 1" .083
WTE-2107-L 5/8"-18 LEFT 1" .083
WTE-2204 3/8"-24 RIGHT 1" .095
WTE-2204-L 3/8"-24 LEFT 1" .095
WTE-2205 7/16"-20 RIGHT 1" .095
WTE-2205-L 7/16"-20 LEFT 1" .095
WTE-2206 1/2"-20 RIGHT 1" .095
WTE-2206-L 1/2"-20 LEFT 1" .095
WTE-2207 5/8"-18 RIGHT 1" .095
WTE-2207-L 5/8"-18 LEFT 1" .095
WTE-2306 1/2"-20 RIGHT 1 1/8" .058
WTE-2306-L 1/2"-20 LEFT 1 1/8" .058
WTE-2307 5/8"-18 RIGHT 1 1/8" .058
WTE-2307-L 5/8"-18 LEFT 1 1/8" .058
WTE-2406 1/2"-20 RIGHT 1 1/8" .065
WTE-2406-L 1/2"-20 LEFT 1 1/8" .065
WTE-2407 5/8"-18 RIGHT 1 1/8" .065
WTE-2407-L 5/8"-18 LEFT 1 1/8" .065
WTE-2506 1/2"-20 RIGHT 1 1/8" .083
WTE-2506-L 1/2"-20 LEFT 1 1/8" .083
WTE-2507 5/8"-18 RIGHT 1 1/8" .083
WTE-2507-L 5/8"-18 LEFT 1 1/8" .083
WTE-2508 3/4"-16 RIGHT 1 1/8" .083
WTE-2508-L 3/4"-16 LEFT 1 1/8" .083
WTE-2606 1/2"-20 RIGHT 1 1/8" .095
WTE-2606-L 1/2"-20 LEFT 1 1/8" .095
WTE-2607 5/8"-18 RIGHT 1 1/8" .095
WTE-2607-L 5/8"-18 LEFT 1 1/8" .095
WTE-2608 3/4"-16 RIGHT 1 1/8" .095
WTE-2608-L 3/4"-16 LEFT 1 1/8" .095
WTE-2707 5/8"-18 RIGHT 1 1/4" .095
WTE-2707-L 5/8"-18 LEFT 1 1/4" .095
WTE-2708 3/4"-16 RIGHT 1 1/4" .095
WTE-2708-L 3/4"-16 LEFT 1 1/4" .095
WTE-2807 5/8"-18 RIGHT 1 1/4" .120
WTE-2807-L 5/8"-18 LEFT 1 1/4" .120
WTE-2808 3/4"-16 RIGHT 1 1/4" .120
WTE-2808-L 3/4"-16 LEFT 1 1/4" .120
WTE-2907 5/8"-18 RIGHT 1 3/8" .095
WTE-2907-L 5/8"-18 LEFT 1 3/8" .095
WTE-2908 3/4"-16 RIGHT 1 3/8" .095
WTE-2908-L 3/4"-16 LEFT 1 3/8" .095
WTE-3007 5/8"-18 RIGHT 1 3/8" .120
WTE-3007-L 5/8"-18 LEFT 1 3/8" .120
WTE-3008 3/4"-16 RIGHT 1 3/8" .120
WTE-3008-L 3/4"-16 LEFT 1 3/8" .120
WTE-3057 5/8"-18 RIGHT 1 1/2" .095
WTE-3057-L 5/8"-18 LEFT 1 1/2" .095
WTE-3058 3/4"-16 RIGHT 1 1/2" .095
WTE-3058-L 3/4"-16 LEFT 1 1/2" .095
WTE-3108 3/4"-16 RIGHT 1 1/2" .120
WTE-3108-L 3/4"-16 LEFT 1 1/2" .120
WTE-3109 7/8"-14 RIGHT 1 1/2" .120
WTE-3109-L 7/8"-14 LEFT 1 1/2" .120
WTE-3208 3/4"-16 RIGHT 1 1/2" .250
WTE-3208-L 3/4"-16 LEFT 1 1/2" .250
WTE-3209 7/8"-14 RIGHT 1 1/2" .250
WTE-3209-L 7/8"-14 LEFT 1 1/2" .250
WTE-3308 3/4"-16 RIGHT 1 3/4" .120
WTE-3308-L 3/4"-16 LEFT 1 3/4" .120
WTE-3309 7/8"-14 RIGHT 1 3/4" .120
WTE-3309-L 7/8"-14 LEFT 1 3/4" .120
WTE-3310 1"-14 RIGHT 1 3/4" .120
WTE-3310-L 1"-14 LEFT 1 3/4" .120
WTE-3311 1 1/4"-12 RIGHT 1 3/4" .120
WTE-3311-L 1 1/4"-12 LEFT 1 3/4" .120
WTE-3408 3/4"-16 RIGHT 1 3/4" .250
WTE-3408-L 3/4"-16 LEFT 1 3/4" .250
WTE-3409 7/8"-14 RIGHT 1 3/4" .250
WTE-3409-L 7/8"-14 LEFT 1 3/4" .250
WTE-3410 1"-14 RIGHT 1 3/4" .250
WTE-3410-L 1"-14 LEFT 1 3/4" .250
WTE-3511 1 1/4"-12 RIGHT 2" .250
WTE-3511-L 1 1/4"-12 LEFT 2" .250
